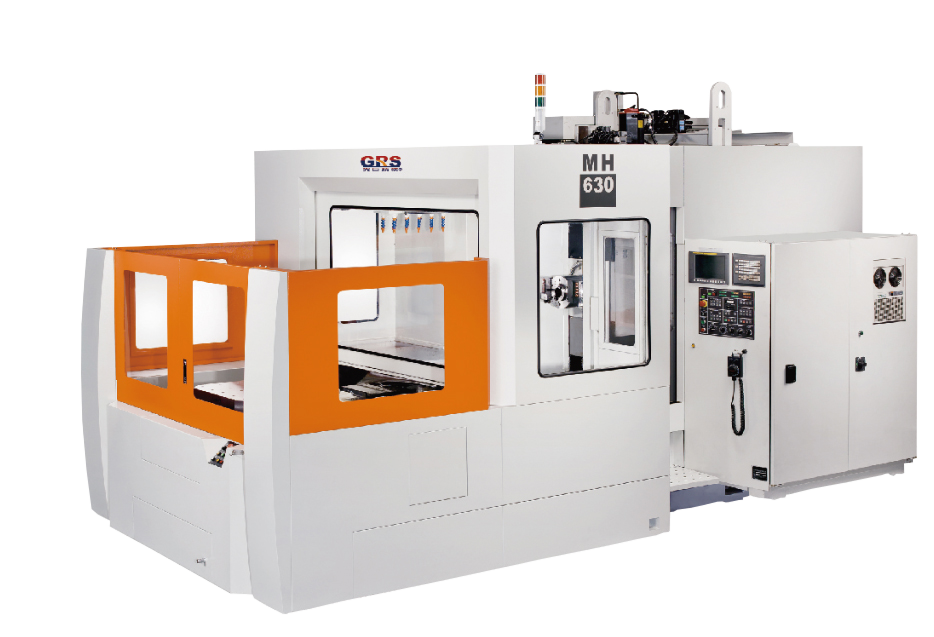

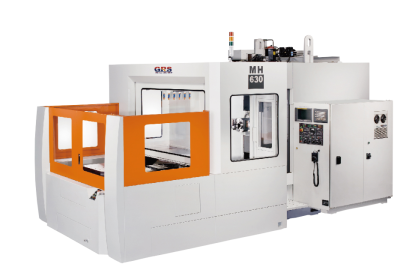

| MODEL | MH-630 | MH-630APC | |
| Work Range | Dimensions | 630*630 | 630×630 |
| T-slot | 5-18×100 | 5*18*100 | |
| Max. loading capacity | 1200kg | 1200Kg | |
| B minimum indexing | 1° (Opt0.001) | 1° or 0.001° | |
| Pallet capacity | 1 | 2 | |
| travel | Max. travel range of X/Y/Z-axis | 1050/800/900 | 1000 /1000 / 850 |
| Distance from spindle center to table surface | 80~880 | 95～1095 | |
| Distance from spindle nose to table center | 120~1020 | 130～980 | |
| spindle | Spindle taper | BT50 | BT50/190 |
| Spindle speed | 4000 (Belt type1:2) | 6000rpm | |
| feedrate | Cutting feedrate | 1~10000mm/min | 15000mm/min |
| Minimumsetting unit of X/Y/Z-axis | 36m/min | 20m/min | |
| Minimumsetting unit of X/Y/Z-axis | 0.001 | 0.001 | |
| tool | Tool capacity | 24 | 40 |
| Tool selection | arbitrarily | arbitrarily | |
| Max. tool dia. x length | Φ125×350 | Ф125-250×400 | |
| Max. tool weight | 15kg | 12-25KG | |
| Tool shank type | BT50 | BT /50 | |
| drive motor | Spindle motor | 15 / 18.5KW | 18.5 / 22KW |
| Servo motor of X/Y/Z/B-axis | Bis22/ Bis30B / Bis22/Bis12/3000 | 4.5/ 4.5 / 4.5 /3 KW | |
| Spindle recirculatinglubrication motor | 370W | 370W | |
| Centralized lubrication system | 12W | 12W | |
| Hydraulic motor | 2.2KW | 2.25 KW | |
| Coolant motor (for tools/chips) | 750W | 0.75KW | |
| Chip conveyor motor | 400w | 200w | |
| ATC motor | 0.56 KW | 0.373 KW | |
| Accuracy | Positioning | ±0.005 | 0.01 |
| Repeatability | ±0.005 | 0.008 | |
| Machinesize | Outline dimension | 3200×4200×3000 | 4000×3300×3200 |
| Net weight | 11200kg | 12000 Kg | |
