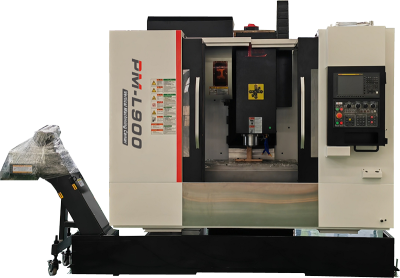

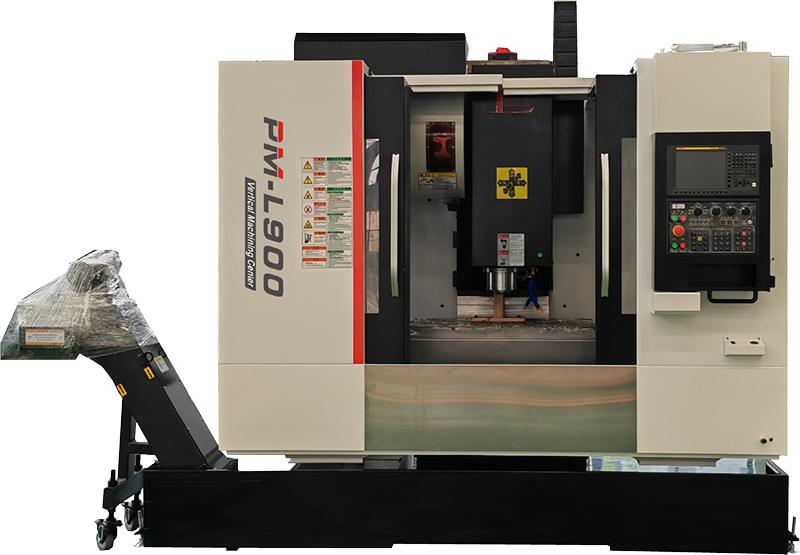

| MODEL | PM-L900 | |
| Travel | X axis travel | 900 |
| Y axis travel | 650 | |
| Z axis travel | 650 | |
| Distance from spindle nose to table surface | 120～770 | |
| Table | Table area | 1000×600 |
| Max.load of table | 700kg | |
| T-slot | 18-5×125 | |
| Spindle | Spindle taper | BT40/150 |
| Spindle speed | 10000rpm | |
| Spindle drive | Belt type | |
| Spindle motor | 11/15kw | |
| Spindle cooling | lubricating grease | |
| Feed Drive | Rapid movement on（X、Y axis） | 48 |
| Rapid movement on（Z axis） | 36 | |
| 3Axis slide | Three axis roller guide | |
| X axis rail specifications | 35 | |
| Y axis rail specifications | 45 | |
| Z axis rail specifications | 45 | |
| Cutting feed rate | 1-10000 | |
| Minimum feed unit | 0.001 | |
| 3Axis motor output（X、Y、Z） | 3kw | |
| A.T.C | Magazine type | Knife arm type |
| Tool magazine capacity | 24 | |
| Max.tool diameter | Ø 80/ Ø 150 | |
| Max.tool length | 300 | |
| Max.tool weight | 7kg | |
| Precision | Positioning | 0.007 |
| Repeatability | 0.006 | |
| Other | Power requirement | 25KVA |
| Floor space(L×W×H) | 2700x2350x2800 | |
| Air source requirements | 7kg | |
| Machine weight | About 5550kg | |
| Controller | FANUC 0i-TF | |
