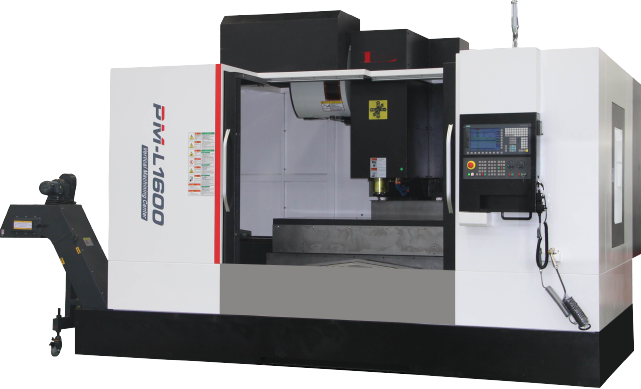

| MODEL | PM-L1600 | |
| Travel | X axis travel | 1600 |
| Y axis travel | 800 | |
| Z axis travel | 700 | |
| Distance from spindle center to column | 951 | |
| Distance from spindle nose to table | 180-880 | |
| Table | Table area | 2000×900 |
| Max.load of table | 1900kg | |
| T-slot | 22-5×150 | |
| Spindle | Spindle taper | BT50 |
| Spindle speed | 6000rpm | |
| Spindle drive | Belt type | |
| Spindle motor | 15/18.5kw | |
| Spindle cooling | lubricating grease | |
| Feed Drive | 3Axis motor output（X、Y、Z） | B40/2000 |
| Three-axis rapid displacement | 24/24/20m/min | |
| Triaxial track specifications | X axis:55 Y axis:45 Z axis:55 | |
| Minimum feed unit | 0.001 | |
| A.T.C | Magazine type | Knife arm type |
| Tool magazine capacity | 24 | |
| Full knife diameter | Ø110 | |
| The diameter of the hollow blade | Ø200 | |
| Longest tool | 300 | |
| Precision | Positioning | 0.007 |
| Repeatability | 0.006 | |
| Other | Power requirement | 30KVA |
| Floor space(L×W×H) | 3900×3280×3150 | |
| Air source requirements | About 12300kg | |
| Controller | FANUC 0i-TF | |
