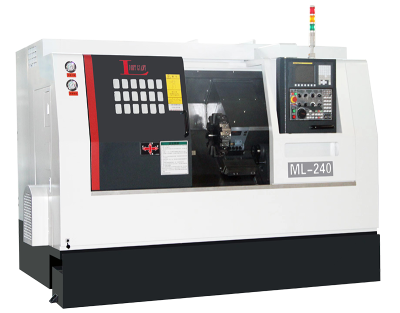

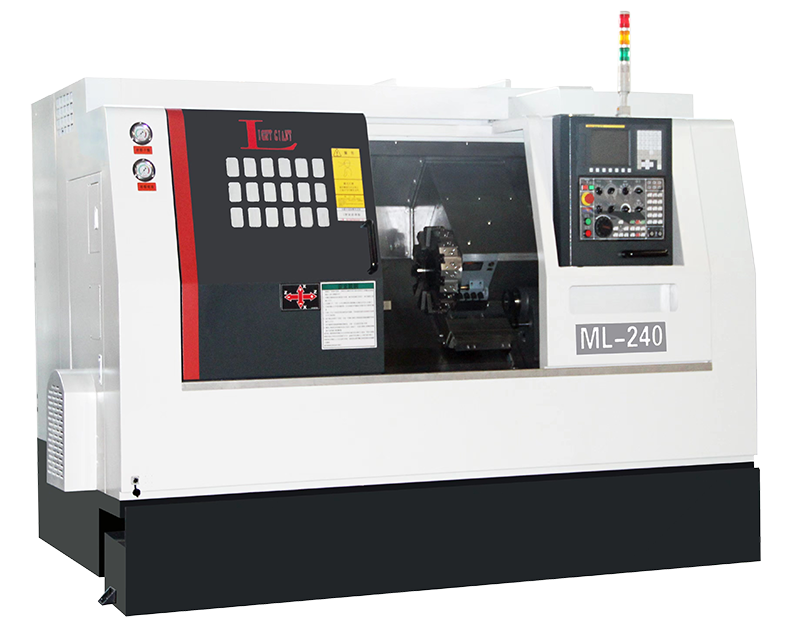

| MODEL | ML-240T | |
| Capacity | Max.swing | Ø450 |
| Swing over cross slide | Ø330 | |
| Max.turning length | 450opt：700 | |
| Max.turning diameter | Ø380 | |
| Top heart distance | 478 | |
| Travel | X axis max.travel | 190+20 |
| Z axis max.travel | 450 | |
| X axis motor | α8/3000 | |
| Z axis motor | α8/3000 | |
| Z /Xaxis rapid traverse | 30m/min | |
| Positsoning(Z/X) | ±0.004 | |
| Repeatability(Z/X) | ±0.002 | |
| Machine body | 45° | |
| Spindle | Type of spindle nose | STD:A2-6 |
| Through spindle hole | Ø56/Ø45 | |
| Spindle motor power | 7.5/11 kW | |
| Spindle speed range | 4500 rpm | |
| Cs axis | 360°（0.001°） | |
| Chuck size | 8″ Hydraulic | |
| Hydyaulic Tailstock | Quill diameter | Ø75 |
| Tailstock travel | 380 | |
| Quill type | Live | |
| Quill taper | MT-4 | |
| Quill stroke | 100 | |
| Turret | Type | Servo |
| Tool capacity | 12 | |
| Tool shank post | □20×□20 | |
| Boring diameter post | Ø32 | |
| Spindle | 5000rpm | |
| motor | 2.2/3.7kw | |
| Feedrate | Coolant motor | 450W |
| Tool motor | 180W | |
| Hydraulic motor | 2.25KW | |
| Miscellaneous | Power requirement | 20KW |
| W×D×H | 2770×1950×1845 | |
| NetWEIGHT(APPROX) | 3950 kg | |
| Controller | FANUC 0i-TF | |
Specifications are subject to change without notice  | ||
