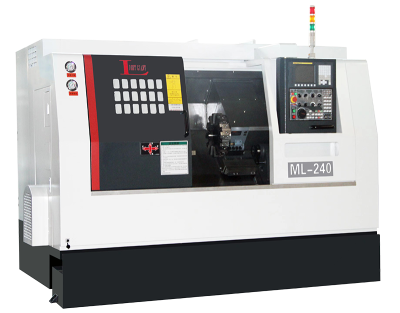

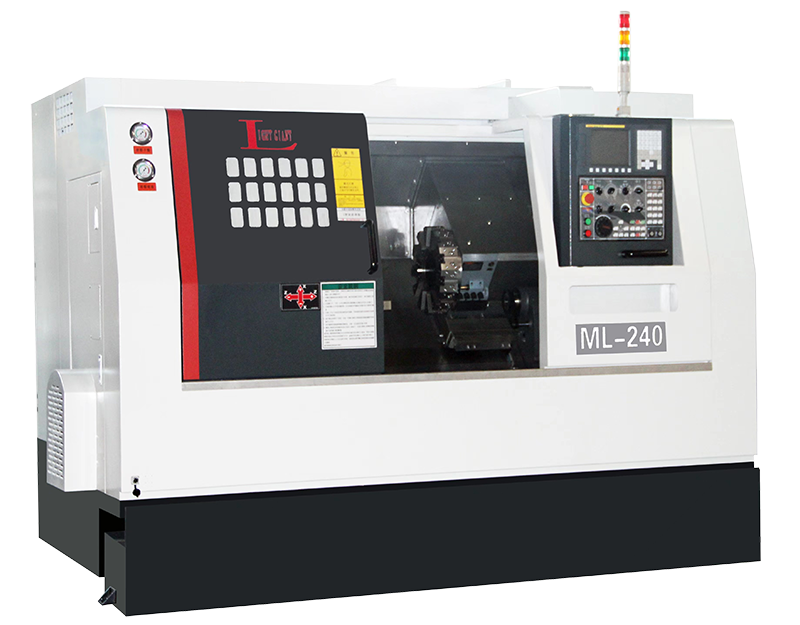

| MODEL | ML-240 | |
| Capacity | Max.swing | Ø500 |
| Swing over cross slide | Ø330 | |
| Max.turning length | 500 opt：750 | |
| Max.turning diameter | Ø 380 | |
| Top heart distance | 528 | |
| Travel | X axis max.travel | 190+20 |
| Z axis max.travel | 450 | |
| X axis motor | B12/3000 | |
| Z axis motor | B12/3000 | |
| Z/Xaxis rapid traverse | 30m/min | |
| Positsoning(Z/X) | 0.007 | |
| Repeatability(Z/X) | 0.005 | |
| Machine body | 45° | |
| Spindle | Type of spindle nose | A2-6 |
| Through spindle hole | Ø62/Ø51 | |
| Spindle motor power | 11/15kW | |
| Spindle speed range | 4500rpm | |
| Chuck size | 8”Hydraulic | |
| Hydyaulic Tailstock | Quill diameter | Ø 75 |
| Tailstock travel | 680 | |
| Quill type | Live | |
| Quill taper | MT-4 | |
| Quill stroke | 100 | |
| Turret | Type | Hydraulic |
| Tool capacity | 12 pac | |
| Tool shank post | □25×□25 | |
| Boring diameter post | Ø32 | |
| Feedrate | Coolant motor | 950W |
| Tool motor | 180W | |
| Hydraulic motor | 2.25KW | |
| Power requirement | 20KW | |
| W×D×H | 2700×1950×1845 | |
| NetWEIGHT(APPROX) | 4150 kg | |
| Controller | FANUC 0i-TF  | |
