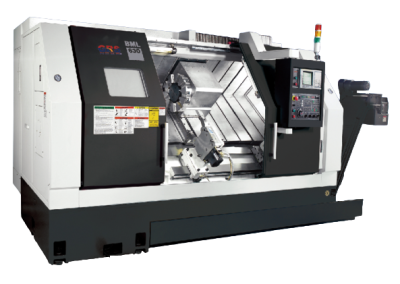

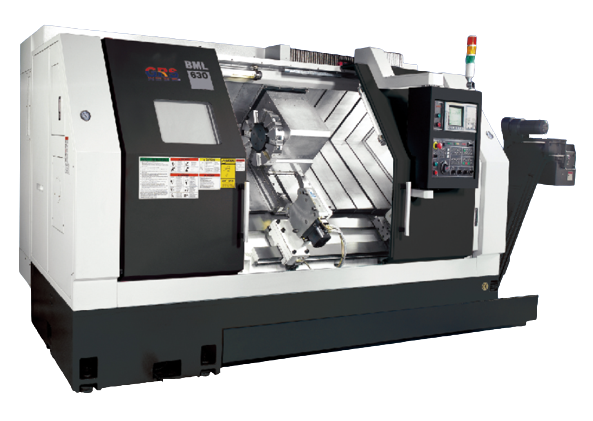

| MODEL | BML-630TY | ||
| Capacity | Swing over bed | Ø700 | |
| Swing over saddle | Ø580 | ||
| Max.turning length | 1000 | 1500 | |
| Max.turning diameter | Ø450 | ||
| Top distance | 1500 | ||
| Travels | X-axis stroke | 225+20 | |
| Y-axis stroke | 124（±62）mm | ||
| Z-axis maximum stroke | 1000 | 1500 | |
| X-axis drive motor | βis40/2000rpm | ||
| Y-axis | βis40/2000rpm | ||
| Z-axis drive motor | βis40/2000rpm | ||
| X-axis rapid feed rate | 15m/min | ||
| Y-axis rapid feed rate | 10m/min | ||
| Z-axis rapid feed rate | 15m/min | ||
| Cs axis | 0.001° | ||
| lathe bed | 30°+30° | ||
| Spindle | Spindle nose end type | A2-8 | |
| Main spindle through-hole diameter | Ø85 | ||
| Draw.bar dia | Ø75 | ||
| Spindle Motor | βip30 15/18.5kw | ||
| Spindle speed | 3500 rpm | ||
| Chuck size | 10” 油压 | ||
| Tails tock | Tail seat shaft diameter | Ø90 | |
| Tail seat travel | 850 / 1350 | ||
| Top center taper | MT5 | ||
| Top center stroke | 120 | ||
| Top center drive mode | 油压 | ||
| Knife tower | type | SAUTER BMT-65 | |
| Number of cutting tools | 12支 | ||
| Square tool handle | □25×□25 | ||
| Boring tool holder | Ø40 | ||
| Longest tool change time | 1.5sec | ||
| B-axis speed | 4000rpm | ||
| B-axis motor | 3.7/5.5kw | ||
| Accuracy | X-axis positioning accuracy | ±0.004 | |
| Y-axis positioning accuracy | ±0.004 | ||
| Z-axis positioning accuracy | ±0.004 | ||
| X-axis repeated positioning accuracy | ±0.003 | ||
| Y-axis positioning accuracy | ±0.003 | ||
| Z-axis repeated positioning accuracy | ±0.003 | ||
| Motor | Cooling device motor | 0.8kw | |
| Oil pressure box motor | 2.25kw | ||
| Other | LxXxH | 3950+1200×1985×2150mm | |
| Net weight/Gross weight | 7070/7980kg | ||
| Controller | FANUC-0I-TF | ||
