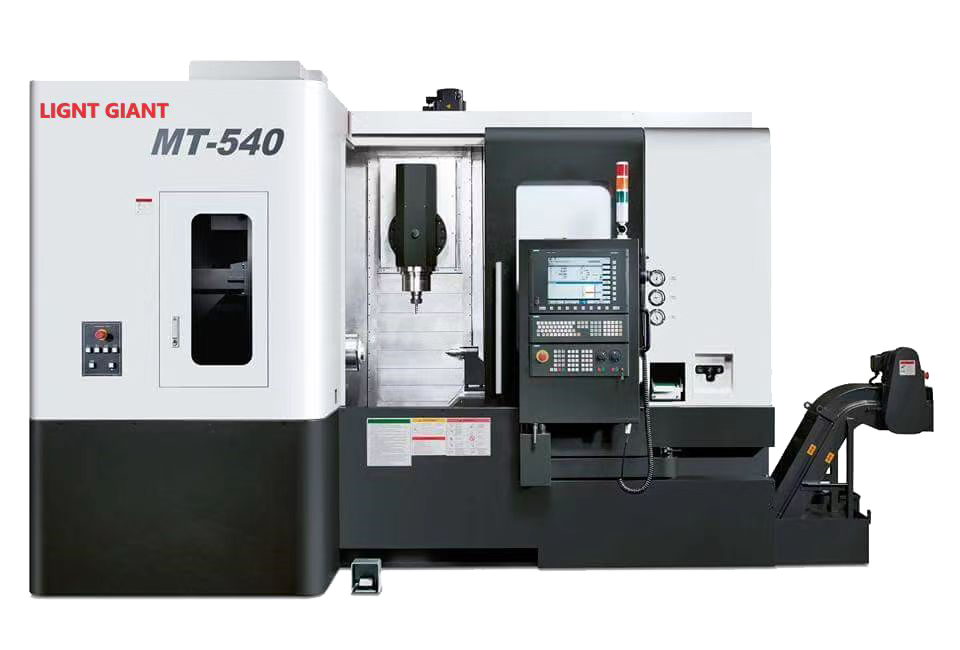

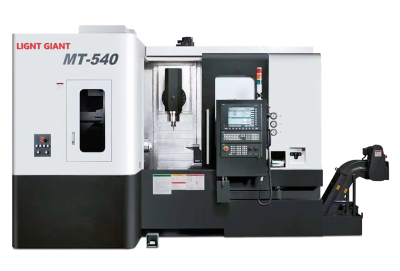

| Item | MT-540 | |
| work extent | Lathe bed maximum diameter of rotation | Ø540 |
| Max. machining length | 700 | |
| Maximum cutting diameter | Ø350 | |
| Bed angle | 0° | |
| Main spindle | Spindle nose | A2-6 |
| Spindle through-hole diameter | Ø62 | |
| Maximum diameter of bar material | Ø52 | |
| speed of main shaft | 4900 rpm | |
| Chuck size | 8” Oil pressure | |
| Spindle motor | 22kw | |
| Milling head | Shank type | KM63UT |
| Milling spindle speed（rpm） | 12000rpm | |
| torque | 160N-m | |
| Milling spindle motor output | 29.3kw | |
| A-axis | 360°/15°segmentation | |
| A-axis | Rotation angle | ±110°/0.001° |
| Maximum speed | 16.7rpm | |
| B-axis repeated positioning accuracy | ±3sec | |
| C-axis | rotation angle | 360°/0.001° |
| maximum velocity | 120rpm | |
| length of travel | X-Axis Travel | 660 |
| Z-axis travel | 760 | |
| Travel Y-axis | 200 | |
| W-axis Travel | 745 | |
| rapid feed | X-axis rapid traverse | 36m/min |
| Y-axis rapid traverse | 36 m/min | |
| Z-axis rapid traverse | 36 m/min | |
| W-axis rapid traverse | 30 m/min | |
| tool crib | type | KM |
| Number of tools | 36 pieces | |
| max.tool length | 200 | |
| max.tool weight | 5kg | |
| T-T tool change time | 5sec | |
| max.tool diameter | 80 | |
| Tail stock | Angular rotating tail stock (optional) | 0°、90°、180° |
| Thimble tail seat | MT40 | |
| Tail stock travel | 745 | |
| positioning accuracy | X-axis positioning accuracy | ±0.004 |
| Z-axis positioning accuracy | ±0.004 | |
| Y-axis positioning accuracy | ±0.004 | |
| W-axis positioning accuracy | ±0.004 | |
| Repeat positioning | X-axis repeated positioning accuracy | ±0.004 |
| Z-axis repeated positioning accuracy | ±0.003 | |
| Y-axis repeated positioning accuracy | ±0.003 | |
| W-axis repeated positioning accuracy | ±0.003 | |
| other | Length×Width×Height | 4700×2800×2700mm |
| Voltage demand | 380V /75KVA | |
| Net weight of machine tool | 9770kg | |
| controller | Siemens 840d | |
